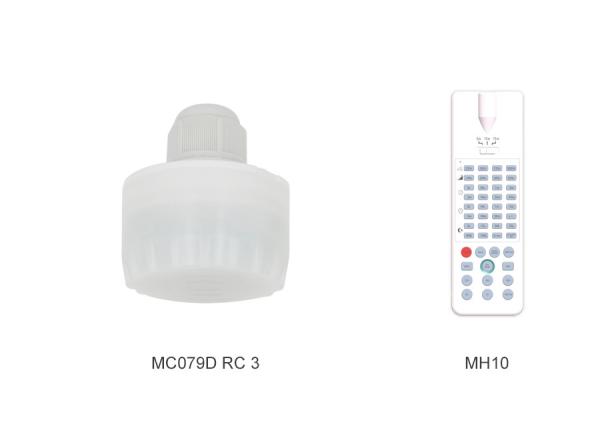

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

Name: MC079D RC3 DC Motion Sensor Plugin Design Higbay application 15m mouting height
Brand: Merrytek
Price: 1 USD

Cheap MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height for sale

Brand Name : Merrytek

Model Number : MC079D RC3

Certification : CE

Place of Origin : China

MOQ : 300pcs

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 20,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Packed in bubble bag firstly, and then reinforced with carton for outer packing

Mounting Height : 15m Max

DC Input Voltage : 12/24V DC ±1V

Rated Voltage : 12/24V

Stand-by Power : <0.3W

Working Mode : 0-10V DC

Operating Temperature : -35℃~70℃

Certificate : CE

Lifetime : 5 Years Warranty @ Ta Full load

Detecting Angle : 150°(wall mounting) 360°(ceiling mounting)

Contact Now

DC Motion Sensor MC079D RC3 with Plug-in Design and Daylight Priority Function

Easy Upgrading For Warehouse High Bay Lights

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

1. Features

12/24V DC input,for DC systems or LED power supplies with 12/24V DC auxiliary power output
0-10V dimming port, 3 or 2 step dimming function
Newly patent design sensor antenna with two detection mode: high sensitivity detection and interference immunity detection. (suitable for installation environments with many metal reflective surfaces)
Plug-in design with IP65 water-proof design
15m maximum installation height, suitable for most warehouses
Patented remote control, transmitting angle of the remote control is adjustable according to mounting height
Override function
Dim+/Dim- to set occupancy light level
Daylight priority function

2. Parameter

Input
	DC Input Voltage	12/24V DC ±1V
	Rated Voltage	12/24V

	Stand-by Power	<0.3W

	Wiring	Screw terminals
Output	Working Mode	0-10V DC



	Wiring	Screw terminals
Dim Interface	0-10V Dimming	< 50mA (Non-constant source)



Sensor Parameters	Operating Frequency	5.8 GHz ±75 MHz,ISM Band.
	Transmitting power	1mW Max.
	Hold time	5S/30S/1min/3min/5min/10min/20min/30min
	Stand-by DIM Level	10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
	Stand-by Period	0s/10S/1min/3min/5min/10min/30min/+∞
	Detection Area	25%/50%/75%/100%
	Daylight Sensor	Daylight threshold: 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable Daylight priority: ON/OFF value (5lux/15Lux/30Lux/50Lux)/150Lux 100Lux/200Lux 150Lux/300Lux
	Detecting Radius	See detection pattern
	Mounting Height	15m Max
	Detecting Angle	150°(wall mounting) 360°(ceiling mounting)
Operating Environment	Operating Temperature	-35℃…+70℃
Operating Environment	Storage Temperature	Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing)
Certificate Standards	Safety standards	EN60669-2-1, EN60669-1
	EMC standards	EN55015, EN61000-3-2, EN61000-3-3, EN61547
	Environmental Requirement	Compliant to RoHS
	Certificate	NA
	IP Rating	IP65
	Protection Class	Class II
	Installation	External mounting,integrated mounting
	Dimension	See dimension
	Package	White paper box
	Net Weight	55g
	Lifetime	50,000h @Ta 230V full load
Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.

3. Function

1) On/OFF Function (stand-by period be set to “0”s)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

2) 2-step dimming function (stand-by period be set to “+∞”)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

4) Daylight priority(stand-by period set to +∞)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

4. Dimension (mm)

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

5. Wiring

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

6.Structure

7. Installation

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height

8. Radiation Pattern

Ceiling mounting

*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.

Wall mounting

9. Remote Control

MC079D RC3 DC Motion Sensor Plug-in Design Higbay application 15m mouting height
