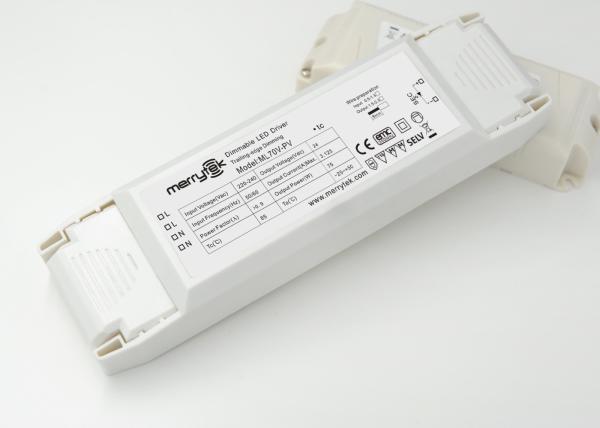

1 × 75W Push 1-10V Dimmable LED Driver , PWM Dimming LED Driver
Description:
1, ML75V-PV is constant voltage dimmable led driver 12Vdc with 1-10V push
2. with 1-10V and push button
3, With top circuit design, AC-DC-DC, no flicker.
4, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.
5, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.
6, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.
7, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.
8, Maximum length of the cable, from switch to last driver is 20m.
9, Factory setting: 100% dimming level and 250mA output.
10, Reset the LED dirver easily by a jumper.
11, Protection: Short circuit / Over voltage / Over temperature.
12. 1, 5 years guaranty
Applications:
For led panel light, led highbay, led strip etc.
Synchronization:
For the resynchronization to work correctly when more than one driver is connected to the same push button, follow steps of below after the drivers are connected:
A) Press push button for more than one second, followed by a short push (<1s), now, led light switches off.
B) Do a long push, the system will be resynchronized.
Dimming Operation:
A) 1-10V Dim
Using the push dimming will make 1-10V dimming inactivated. The driver has to be reset to active the 1-10V dimming function again.
B) PUSH Dim
Short push (<0.1sec): Ignore, to avoid reaction on AC spike.
Short push (0.1~1sec): Switch on or switch off.
Long push (>1sec): Dimming up or down, dimming level automatically stops at minimum or maximum value.
Specifications
| Model NO. | ML75V-PV |
| Input | Input voltage | 220-240Vac, 50/60Hz |
| Power factor (PF) | ≥0.9(@ 240Vac input, full load and without dimmer) |
| Efficiency | ≥82%(@ 240Vac input, full load and without dimmer) |
| Stand-by power | ≤0.5W |
| Max. output voltage | 12V DC |
| Output | Output current | 12V DC, 6.25A max. |
| Voltage accuracy | ±5% |
| Rated power | 75W Max. |
| Dimming mode | 1-10V, PUSH |
| Dimming | Dimming range | 0%-100% |
| Working temperature | -25℃~45℃ |
| Environment | Storage temperature | -40℃~80℃ |
| Insulation class | Class II, SELV |
| Safety and EMC | Withstand voltage | Input-Output: 3.75kVac/5mA/1min |
| EMC | Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 |
| Safety | Compliance to EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6 |
| Short circuit | Protection mode: Auto recovery |
| Protection | Over temperature | Protection mode: Auto recovery |
| Dimension | 220x58x40mm |
| Others | Enclosure | Plastic, white |
| IP rating | IP20 |
| Connection | Input: 4-hole press-in type terminal(L, L, N, N)
Output: Screw terminal block (LED +, LED -) |
| Life time | 50,000h |
| Certification | CE |
| Packing | Bubble bag + cardboard + Carton |
| |
